(185/221) 2025-07-18_20-49-02.jpg

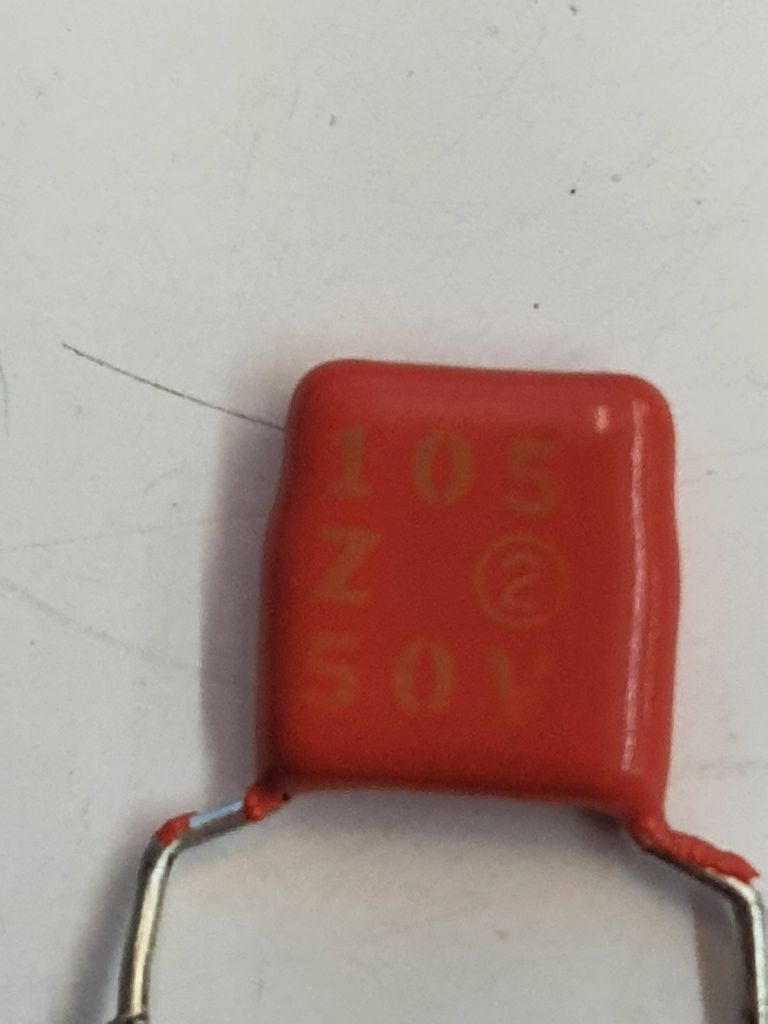

1uF cap identification
184: Spline shaft project
183: Powder coating
182: My painter friend Troy says this is a good primer..
181: Federal 230 gage heads. Two 18650s should make a nice update for the power.
180: Vent that will extract for the fume hood.
179: This will be the table top for the fume hood.
178: Federal 230 gage heads
177: Federal 230 gage heads - Bench has aquired a maze like attitude.
176: Federal 230 gage heads. Test set up blocks so I can go up and down 0.3mm
175: Federal 230 gage heads

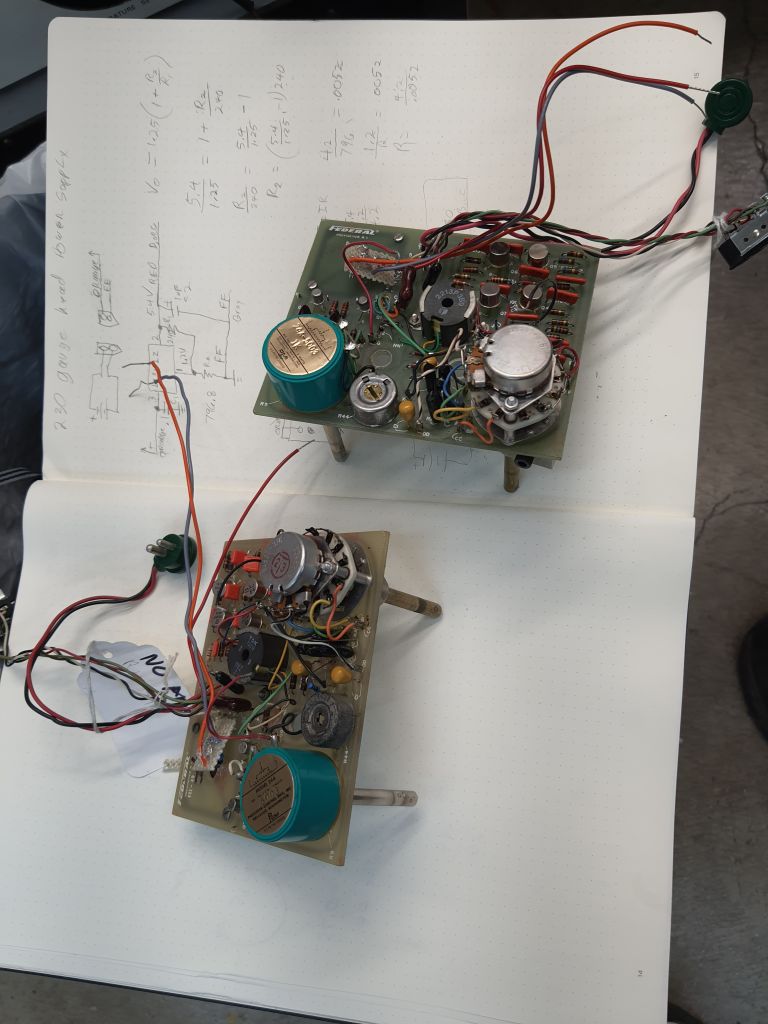

186: Federal 230 electronics and project
187: Federal 230 - the tiny breadboard added is a voltage regulator so it works with the new batteries.
188: Federal 230 Case with new batteries and connector
189: Federal 230 - There is supposed to be a post sticking up in the center of this picture - opposite the tab pointing down - limits the travel of the switch - someone forced it and broke it off.
190: Soldered a brass 3mm nut to replace the broken off tab.
191: Used my Russian 1um blocks to test the Federal 230
192: Tim saw an old Microchroma computer at a museum - same as my first computer..
193: Federal 230's all restored and working. Had to steal a zeroing pot from one of the old ones.
194: You can see the calibration network inside the 5-pin 240° shell
195: Truing up a DOM pipe for the chemistry hood project.
