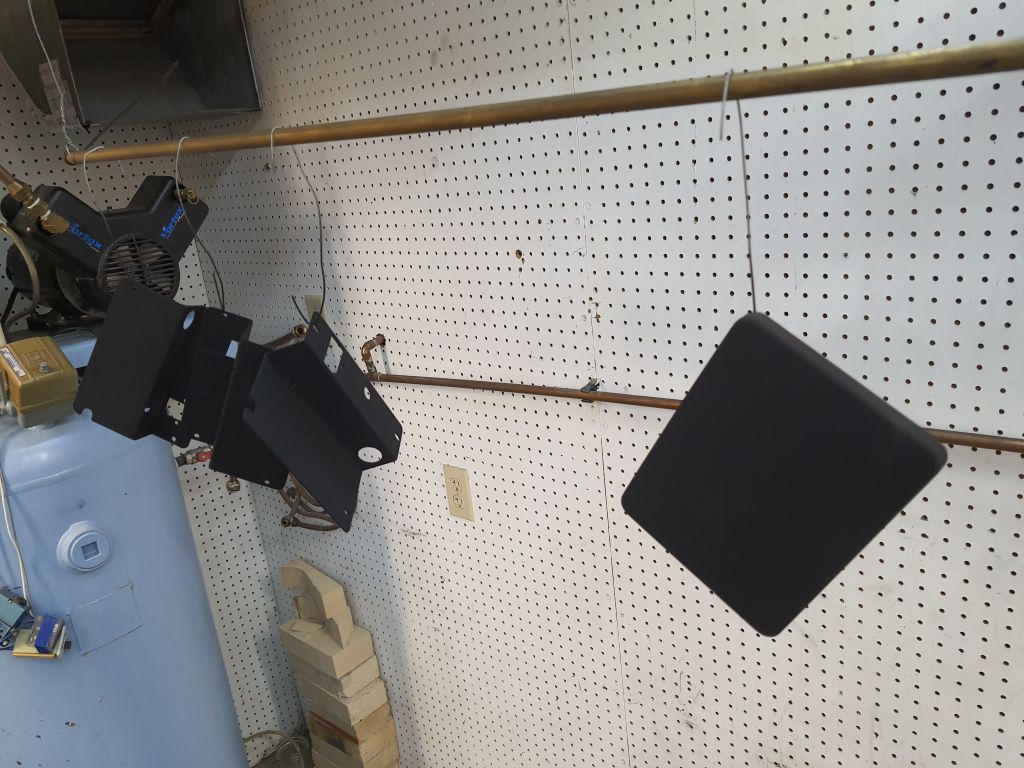

Powder coating
181: My painter friend Troy says this is a good primer..
180: Federal 230 gage heads. Two 18650s should make a nice update for the power.
179: Vent that will extract for the fume hood.
178: This will be the table top for the fume hood.
177: Federal 230 gage heads
176: Federal 230 gage heads - Bench has aquired a maze like attitude.
175: Federal 230 gage heads. Test set up blocks so I can go up and down 0.3mm
174: Federal 230 gage heads
173: Federal 230 gage heads. This pot has both course and fine adjust!
172: Federal 230 gage heads - wonder if I can find sockets for this power connector?

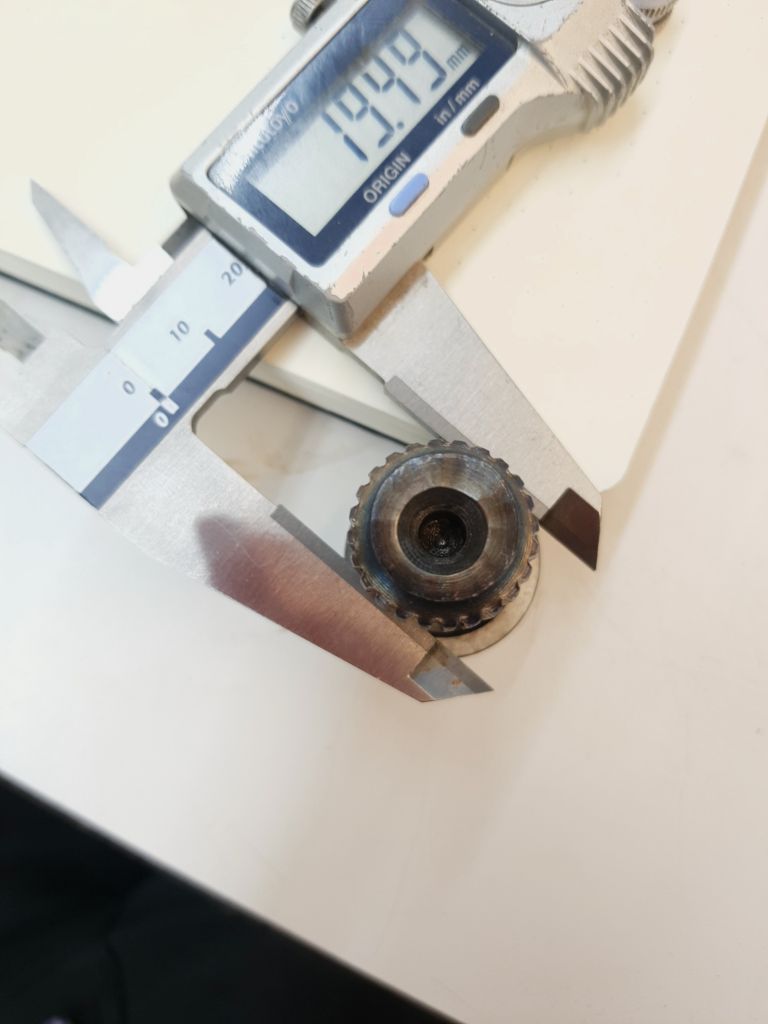

183: Spline shaft project
184: 1uF cap identification
185: Federal 230 electronics and project
186: Federal 230 - the tiny breadboard added is a voltage regulator so it works with the new batteries.
187: Federal 230 Case with new batteries and connector
188: Federal 230 - There is supposed to be a post sticking up in the center of this picture - opposite the tab pointing down - limits the travel of the switch - someone forced it and broke it off.
189: Soldered a brass 3mm nut to replace the broken off tab.
190: Used my Russian 1um blocks to test the Federal 230
191: Federal 230's all restored and working. Had to steal a zeroing pot from one of the old ones.
192: You can see the calibration network inside the 5-pin 240° shell
