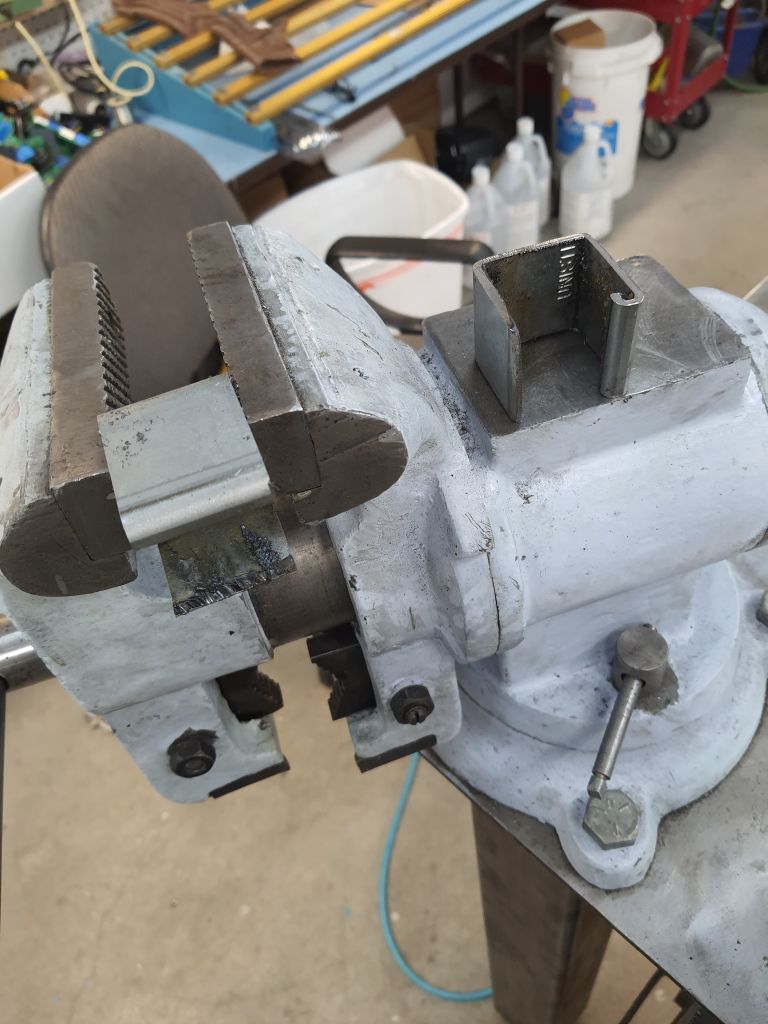

(117/185) 2024-04-16_16-06-06.jpg
Making clamps to hold lathe shelf
116: If you do the math - it is obvious that this DRO is junk.
115: Cut off - made stub to hold welding a 4140 shaft..
114: Too much ink - ended up failing
113: MT3 sketch
112: Eclipse via glasses filter
111: Trying to alingn the compound to a MT3 taper. Didn't work well.
110: Trying to alingn the compound to a MT3 taper. Didn't work well.
109: 2024-04-07_21-19-01.jpg
108: Trying to set lathe to cut a MT3 taper.. 123-block against the side of the compount against the MT2 end of a test bar. I think I can take a trial cut on some stock - and use the trig angle finder of the DRO
107: Coffee tree is blooming..

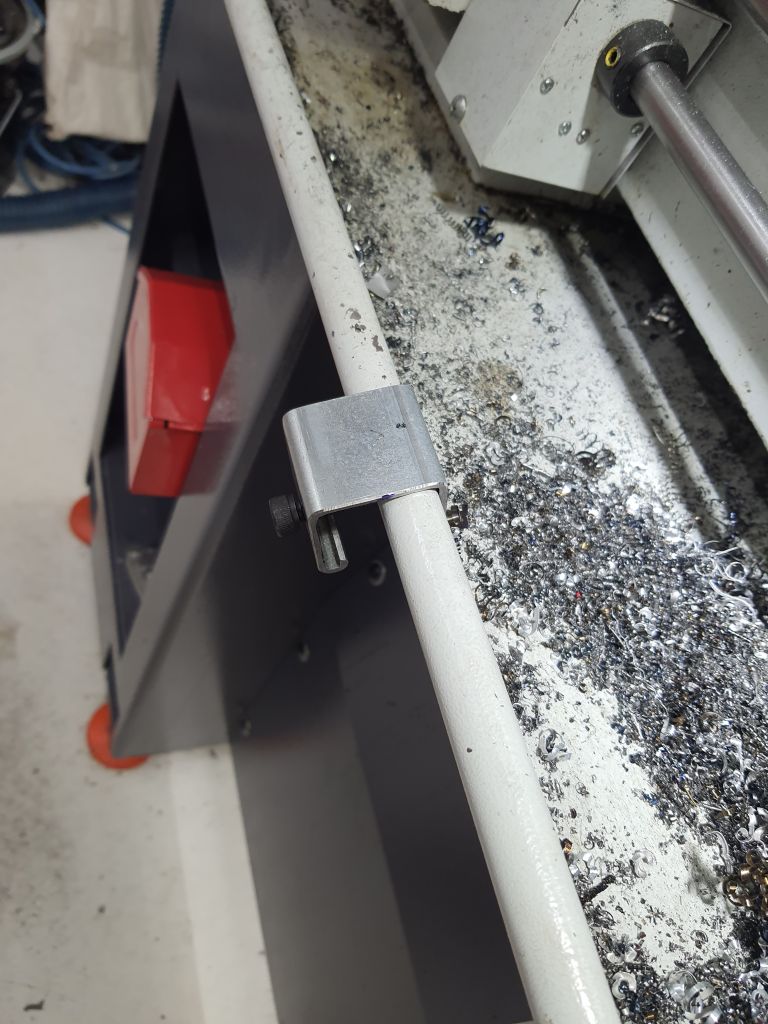

118: Making clamps to hold lathe shelf
119: Making clamps to hold lathe shelf
120: Turning welded on 4140 to MT3
121: Ground 7mm radius
122: Misunderstood the drawing - think there is a radius
123: Radius tool worked..
124: Need to add metal to the tang. Have a MT3 to MT5 adaper on it for heat sink - as well as a copper block.
125: All is well that ends well - I now have a Kwik-Switch 200 with a MT3 shank.
126: Dropped my test indicator.. jamed up.
127: Just needed a tweak..
