(106/364) 2023-03-10_01-06-17_3.jpg

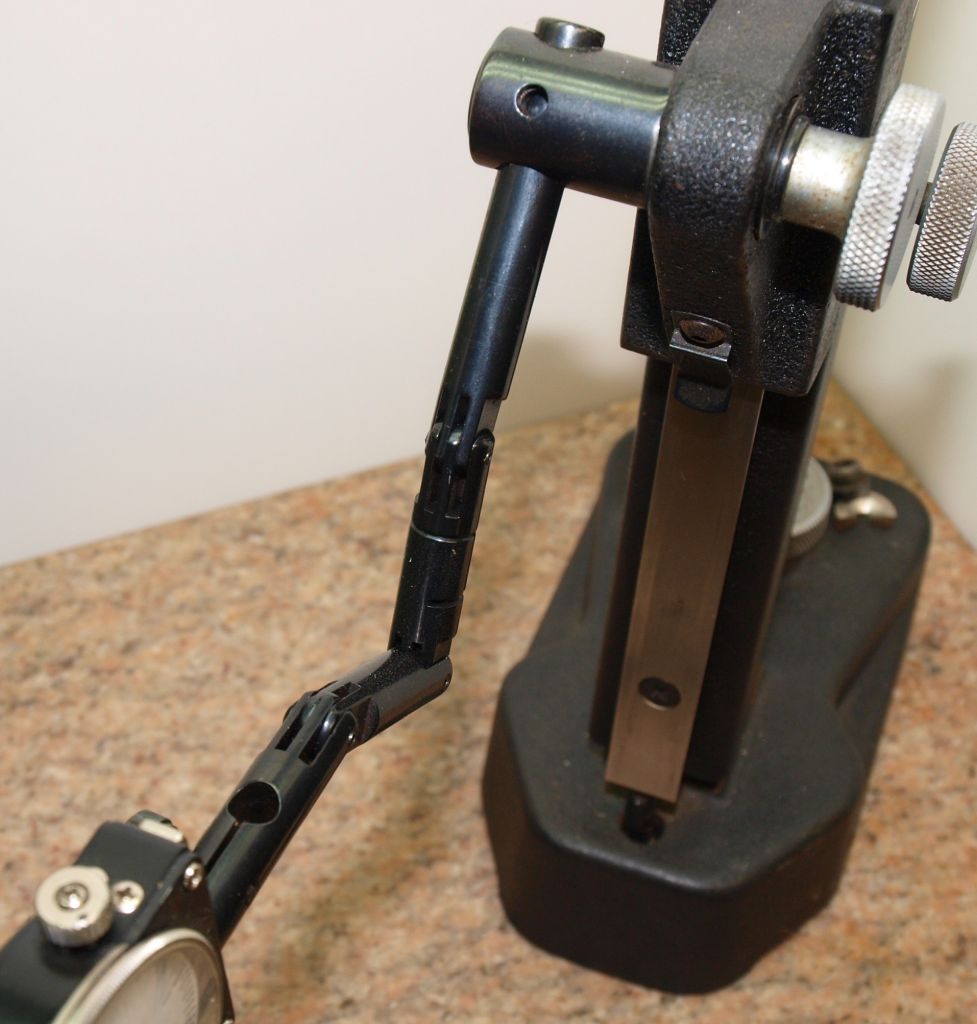

Swiss style articulated arm.
105: Upper left - one and two over - Starrett style sleeve snug
104: Snugs
103: Bridgeport quill lock - double snug.
102: Cone-sleave snug
101: Starrett bits OK - on the top - the cone bit has a V-block like bit to hold the horizontal indicator rod. On the bottom - a main post keyway-snug The bit to hold the horizontal rod is not a cone - I think uses a sleave?
100: Starrett sytle twin-slit-snug joint
99: Starrett sytle twin-slit-snug joint You can see a tapered bit where the snugs mate here - which tightens first - the slits of the piviot?
98: PAV thread mic The base anvil locking screw. Similar to a bridgeport quill lock snug.
97: PAV thread micrometer Base anvil has a very good clamp mechanisim. Not sure why the fancy locking screw on the end?
96: All cleaned - ready to paint - but can't find the paint

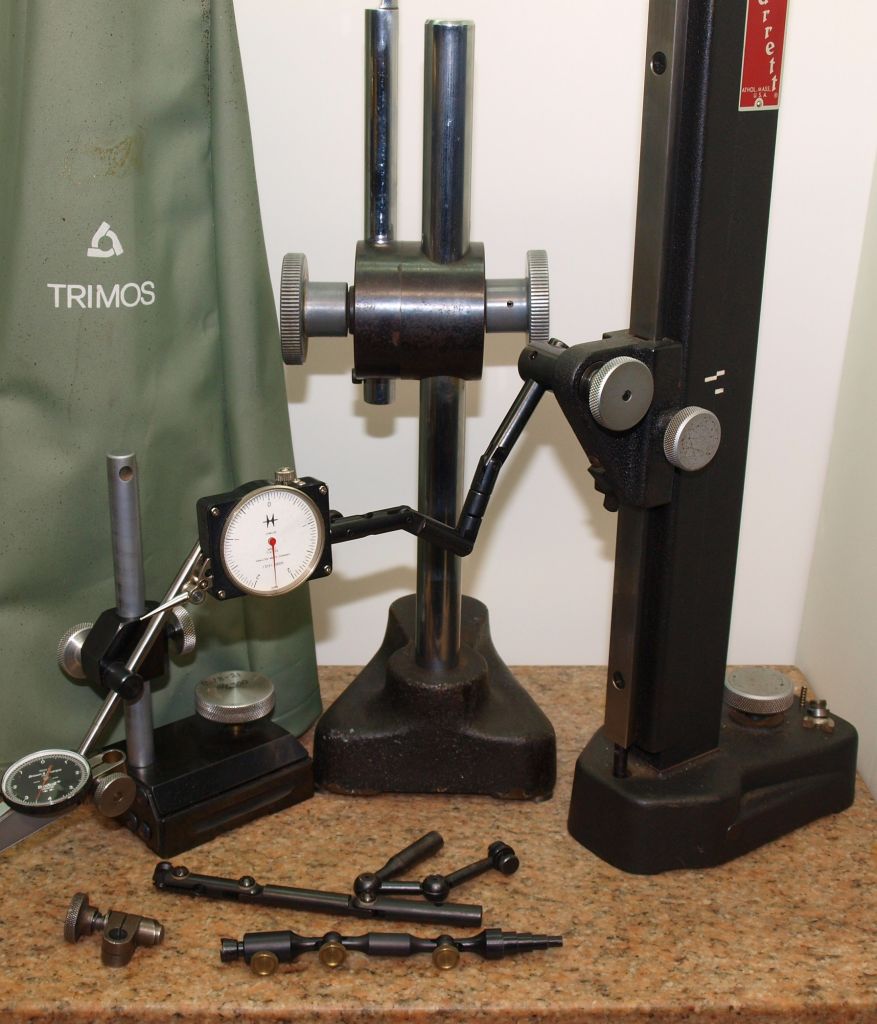

107: Art's stands and arms -
108: Swiss style articulated arm. triple tongue joints. ⌀9.5mm
109: Swiss style articulated arm.
110: Interesting swivel dovetail.Brown & Sharpe Universal dovetail holder P/N 599-7054
111: All cleaned, lubed and restored.
112: BILZ tap holder - size '1'
113: Not sure why I have no memory of buying this????
114: Starrett 57S Universal Snug
115: One more to clean and lube. 5 - 7 - 0 need ink
116: This got part of the numbers re-inked. Inside is a mess to reassemble..
