(280/325) 2022-11-23_13-56-15.jpg

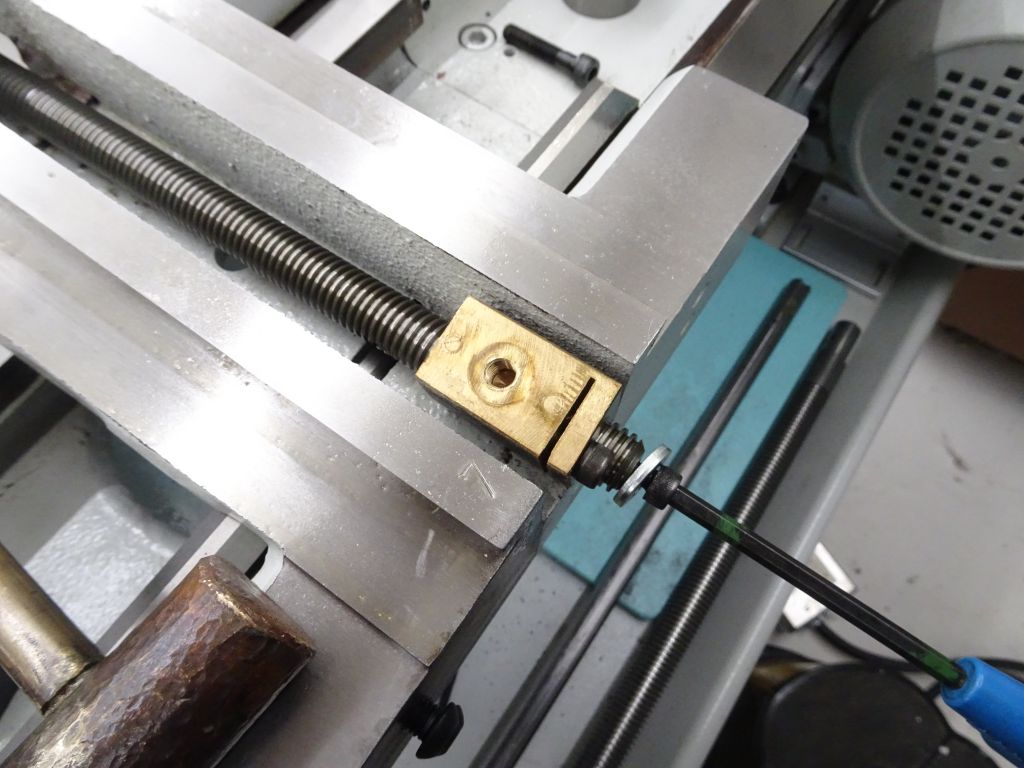

disassembling to clean
279: does not match ways.
278: Top of carriage level -- but ..
277: Adaptive milling block to mount lathe scale.
276: Gap in carriage clamp when fully tightened.
275: Art says he is going to send this to me - can't wait!
274: Art says he is going to send this to me - can't wait!
273: Art says he is going to send this to me - can't wait!
272: Art sent me this on the bench micrometer I restored.
271: Brass tipped grub scews for tail-stock. You can also see the slot I cut in the brass shaft.
270: hanging the scale mount - jack screws to set angles.

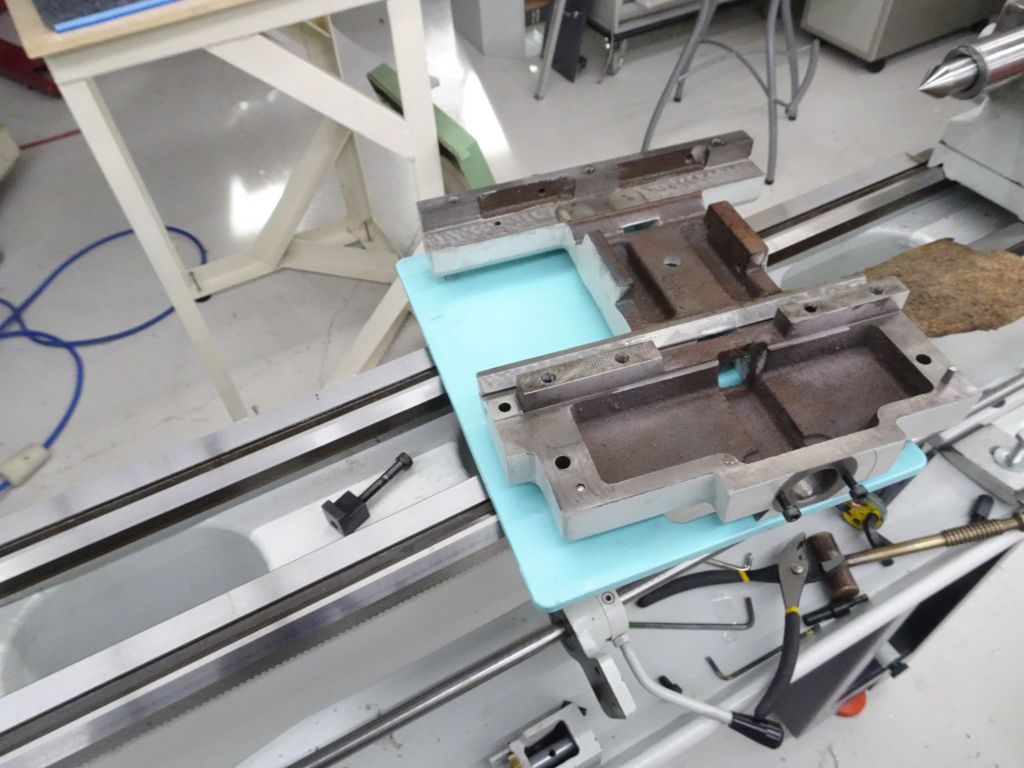

281: Bottom of lathe sadle - came full of grit.
282: Grit on oilers
283: Inking shows really poor contact.
284: Replacement faceplate has paint on the taper.
285: Under paint - taper did not clean up.
286: lining up saddle
287: Just touching the flat - it was machined - but they painted over it? Where the follower rest mounts. The red sticking out from underneath is some shim stock.
288: Just touching the flat - it was machined - but they painted over it? Where the follower rest mounts.
289: Two unmachined flats - machining them for the DRO mount.
290: MT2 - ER32 collet in my drill press - the tang is to short to extract the normal way - have to use wedges. -- The bearings in this old thing are not terrible - about 5 mills of runout at one foot off of a test bar. -- The drill quality is better and no more burrs on drill-bits.
