(207/221) 2025-09-03_11-24-33.jpg

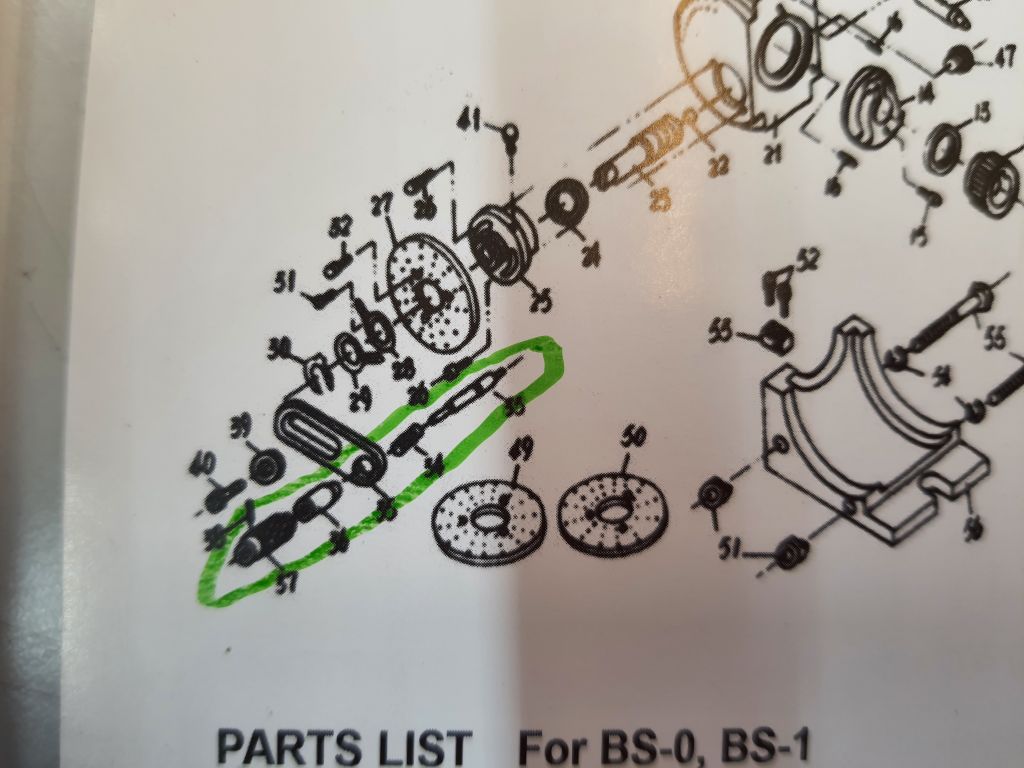

Missing parts nightmare.
206: Setting tail stock height.
205: Adjusting tilt with M2 test bar
204: indexing head disassembly to remove burrs and grit.
203: Indexing head
202: Chemistry table needed screw to make a stiff connection.
201: speaker system - bass is loaded in between my beams and ceiling - sort of like a horn.
200: chemistry hood project - I used fence posts for legs - the small ring reinforces and provides a foot.
199: chemistry hood project - welding finished - fixing a work-stool for Nikolaus
198: chemistry hood project -
197: Broken indicator lot - better shape than I thought - several just need a new crystal. I will bet that more than half are fixable.

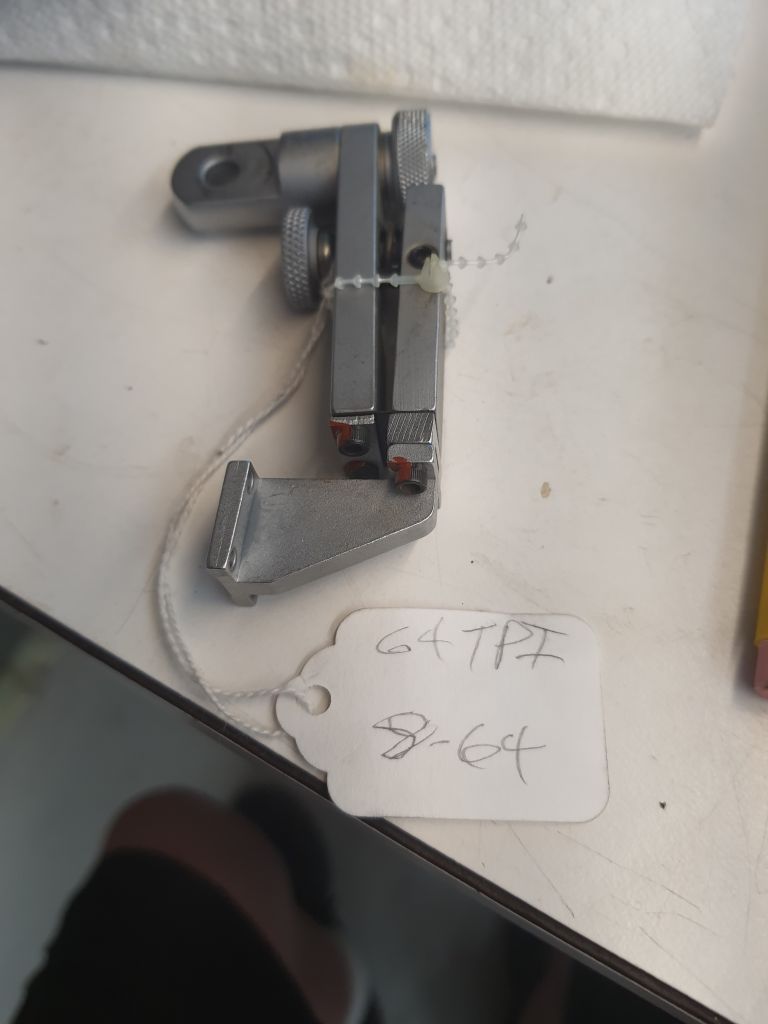

208: Art supplied this fine adjust - needs a 8-64 thread.
209: Class X
210: Fine adjust
211: Made a nut for it and found a clip that fits. But thread must be damaged..
212: Checking out the sine plate
213: Turning the arbor for cutting splines
214: Cutting the key in the arbor
215: Finished arbor
216: Ready to make the spline shaft.
217: 4mm turned out to be too small.. a bit of warping
