(184/189) 2025-07-18_20-49-02.jpg

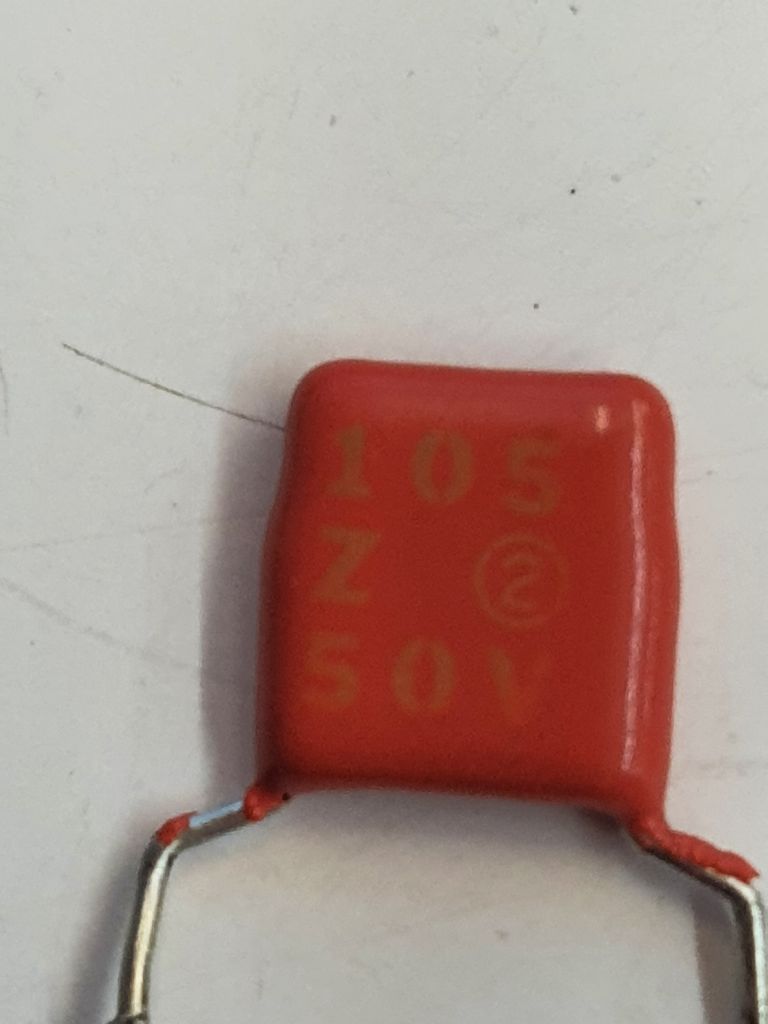

1uF cap identification
183: Spline shaft project
182: Powder coating
181: My painter friend Troy says this is a good primer..
180: Federal 230 gage heads. Two 18650s should make a nice update for the power.
179: Vent that will extract for the fume hood.
178: This will be the table top for the fume hood.
177: Federal 230 gage heads
176: Federal 230 gage heads - Bench has aquired a maze like attitude.
175: Federal 230 gage heads. Test set up blocks so I can go up and down 0.3mm
174: Federal 230 gage heads

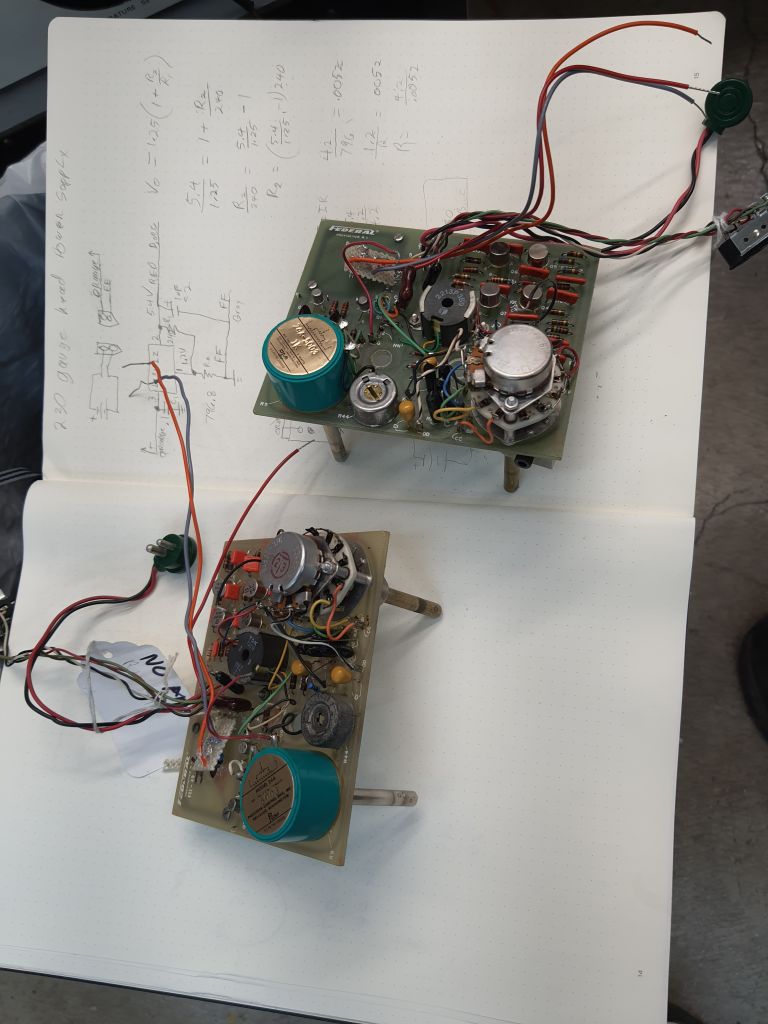

185: Federal 230 electronics and project
186: Federal 230 - the tiny breadboard added is a voltage regulator so it works with the new batteries.
187: Federal 230 Case with new batteries and connector
188: Federal 230 - There is supposed to be a post sticking up in the center of this picture - opposite the tab pointing down - limits the travel of the switch - someone forced it and broke it off.
189: Soldered a brass 3mm nut to replace the broken off tab.
