(145/235) 2025-05-18_22-19-55.jpg

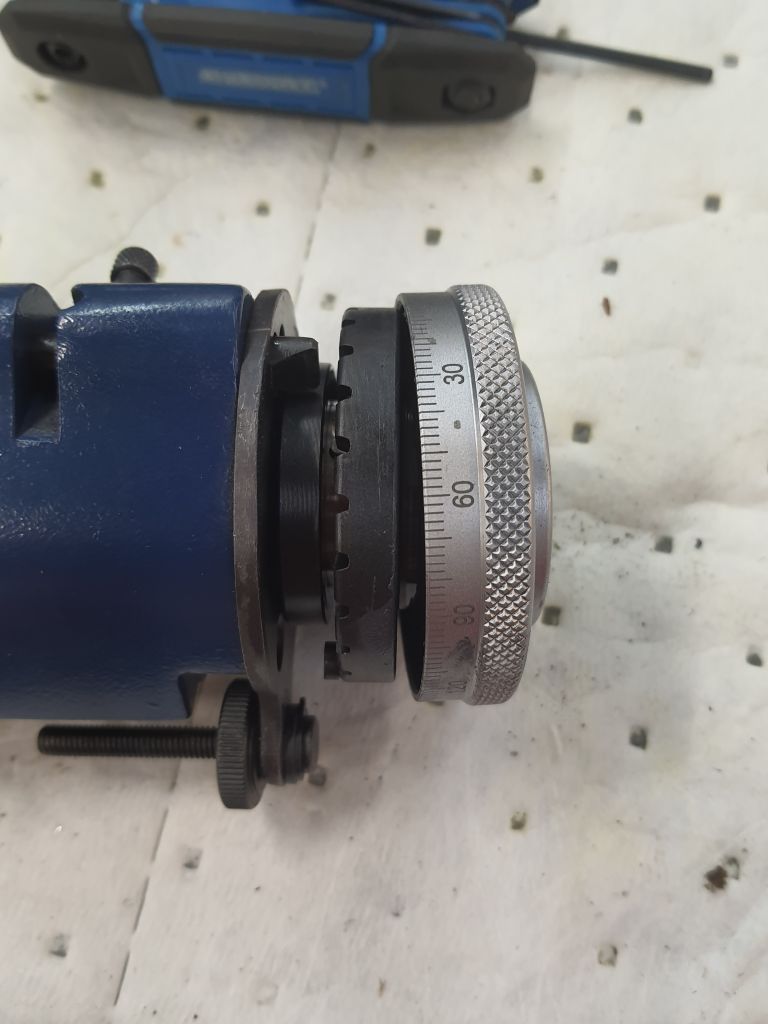

Disassembly of D-bit grinder
144: 2025-05-18_22-16-53.jpg
143: C5 collets are size limited
142: Now that it is sharp, it makes cleaner cuts - less rolling over of the leads.
141: D-bit grinder works well for this.
140: Setting up to sharpen the lead-trim carbide blade.
139: 2025-05-16_16-50-58.jpg
138: This is the indicator, has no model number - just a serial number that they can't cross reference. Strange.
137: Adjusting the flat so it is perfectly level - attempting to drill the probe stud out -
136: I need to wait for the M3.5 nuts to lock the alluminum screw feet to fully test.
135: This is the 254TPI (0,1mm pitch) micro adjuster.

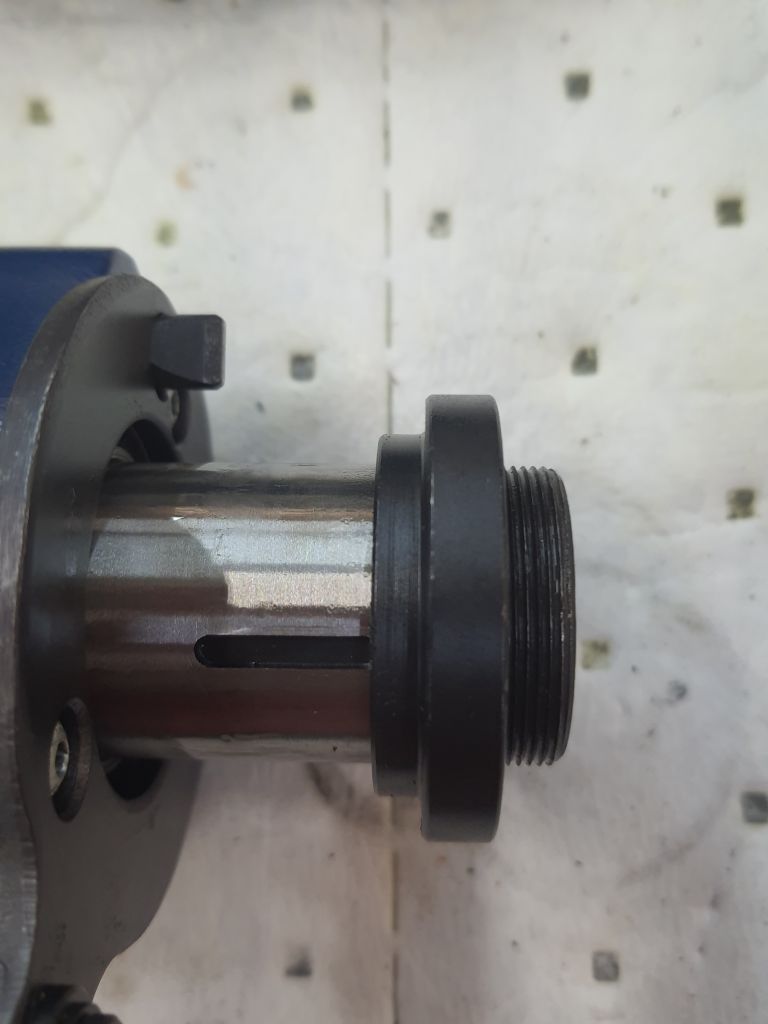

146: Disassembly of D-bit grinder
147: Some lathe work
148: Thread cutting M30-1.0
149: C5 collett to ER32 conversion - made a ring to match the old
150: Boring out to press on to the ER32 shaft
151: C5 collett to ER32 conversion - made a ring to match the old
152: Doggy set up to mill key-slop
153: 2025-05-27_18-39-09.jpg
154: Threaded sleeve pressed on to match C5. It expanded the sleeve enough had to take off a bit.. PITA
155: 2025-05-28_21-23-43.jpg
