(132/235) 2025-05-15_20-44-22.jpg

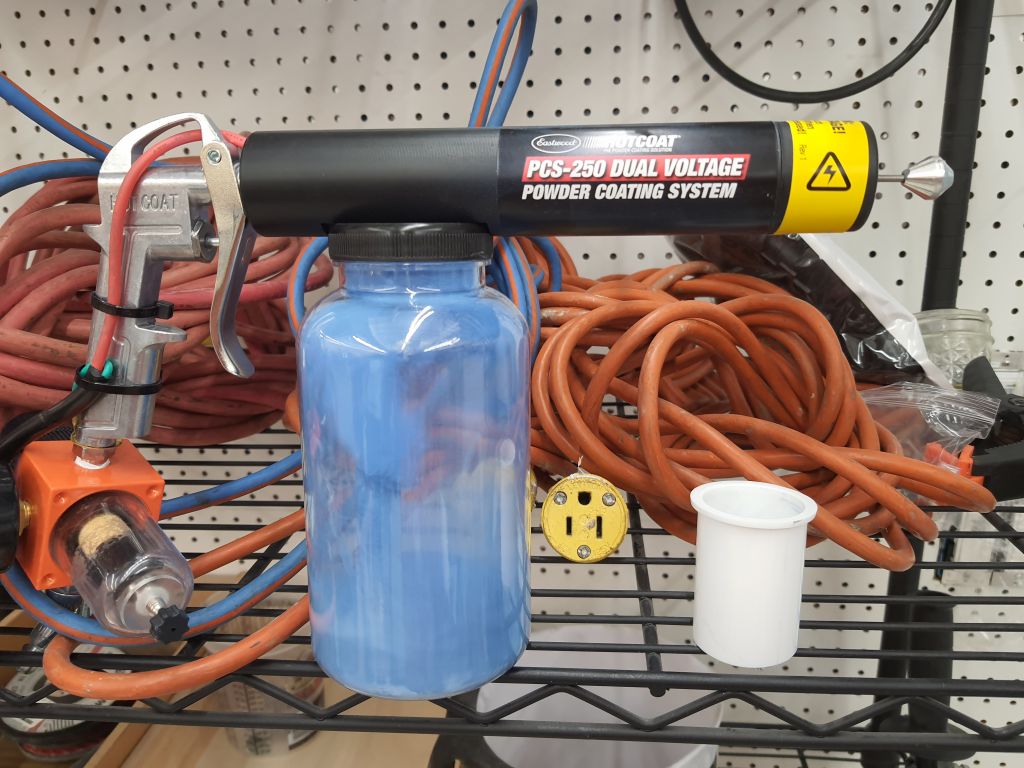

new Powder coating gun
131: This is the setup I used to drill indicator
130: Indicator side opened
129: Failed contact in Washing machine
128: Washing machine repair
127: Trouble drilling - so had to disassemble the indicator
126: Left hand drill -
125: Using centering scope to line up the mill
124: Not much surface to align with.
123: Trying to drill out old broken off probe
122: Drilling grub-screw hole
133: Made a better diffuser
134: With just a point, I can find deviations in the surface plate.
135: This is the 254TPI (0,1mm pitch) micro adjuster.
136: I need to wait for the M3.5 nuts to lock the alluminum screw feet to fully test.
137: Adjusting the flat so it is perfectly level - attempting to drill the probe stud out -
138: This is the indicator, has no model number - just a serial number that they can't cross reference. Strange.
139: 2025-05-16_16-50-58.jpg
140: Setting up to sharpen the lead-trim carbide blade.
141: D-bit grinder works well for this.
142: Now that it is sharp, it makes cleaner cuts - less rolling over of the leads.
