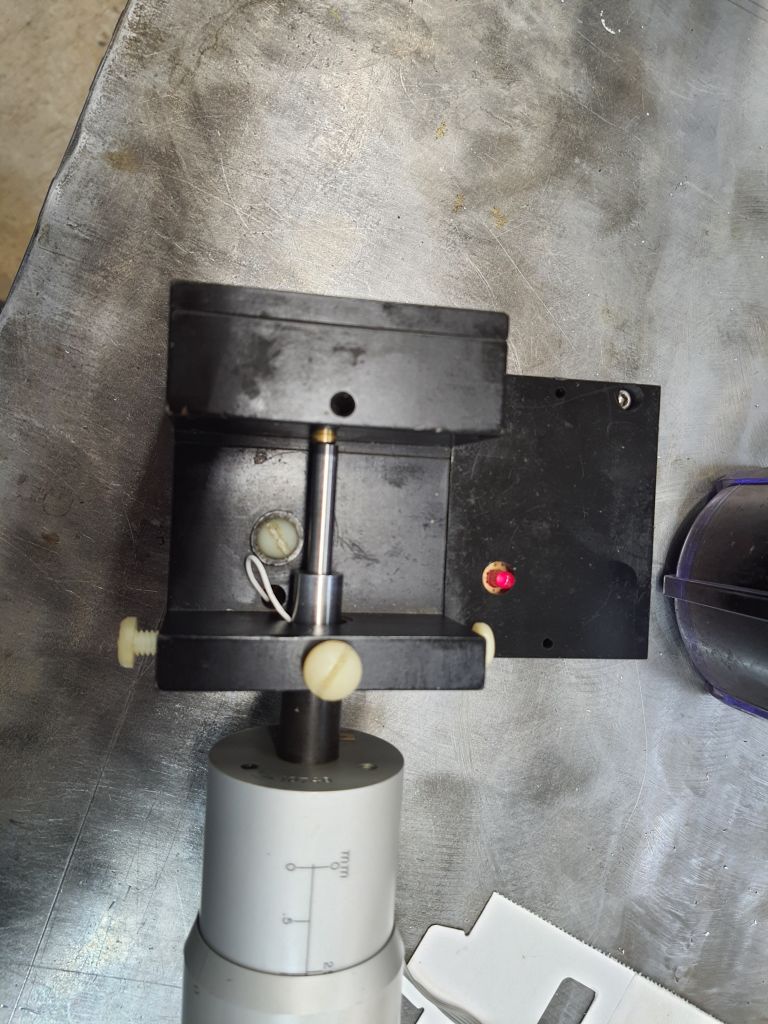

(115/235) 2025-04-17_17-43-38.jpg
This is how it would work - but it doesn't hold the head square.. I'll have to fix that.
114: Lots of work - I think shop made?
113: So They used a CMOS buffer so there was zero current flowing through the micrometer threads.
112: So They used a CMOS buffer so there was zero current flowing through the micrometer threads.
111: Treasures from Art - X-mas in April! Will be the stand for the Bench mike I'm making.
110: Treasures from Art - X-mas in April! Mystery item - figured it out - someone worked VERY hard to make this - electric contact for micrometer head.
109: Treasures from Art - X-mas in April!
108: Something is wrong? I checked and checked - I think it was the beta software.
107: Something is wrong? I checked and checked - I think it was the beta software.
106: I ground the endmill so it had a chamfer.
105: I ground the endmill so it had a chamfer.

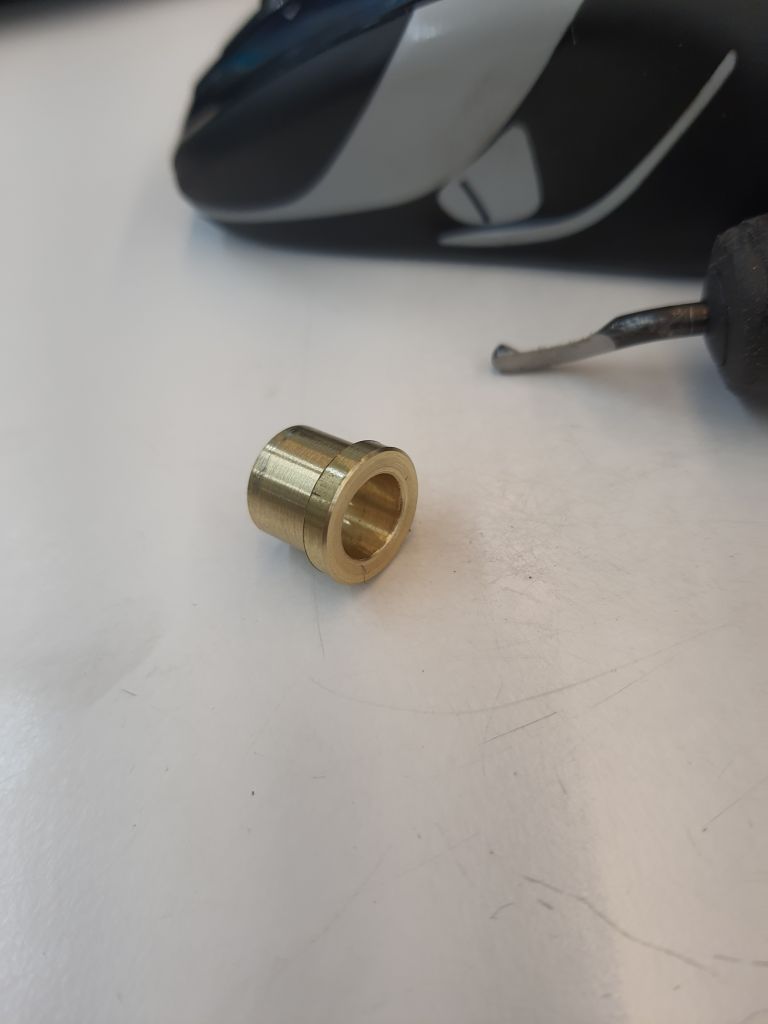

116: Turned a brass collet
117: Split it
118: Just need a hole for a grub-screw
119: Cutting copper for jaws for a vise.
120: Everything but the grub-screw hole tapped
121: Norma's Irises in bloom.
122: Drilling grub-screw hole
123: Trying to drill out old broken off probe
124: Not much surface to align with.
125: Using centering scope to line up the mill
